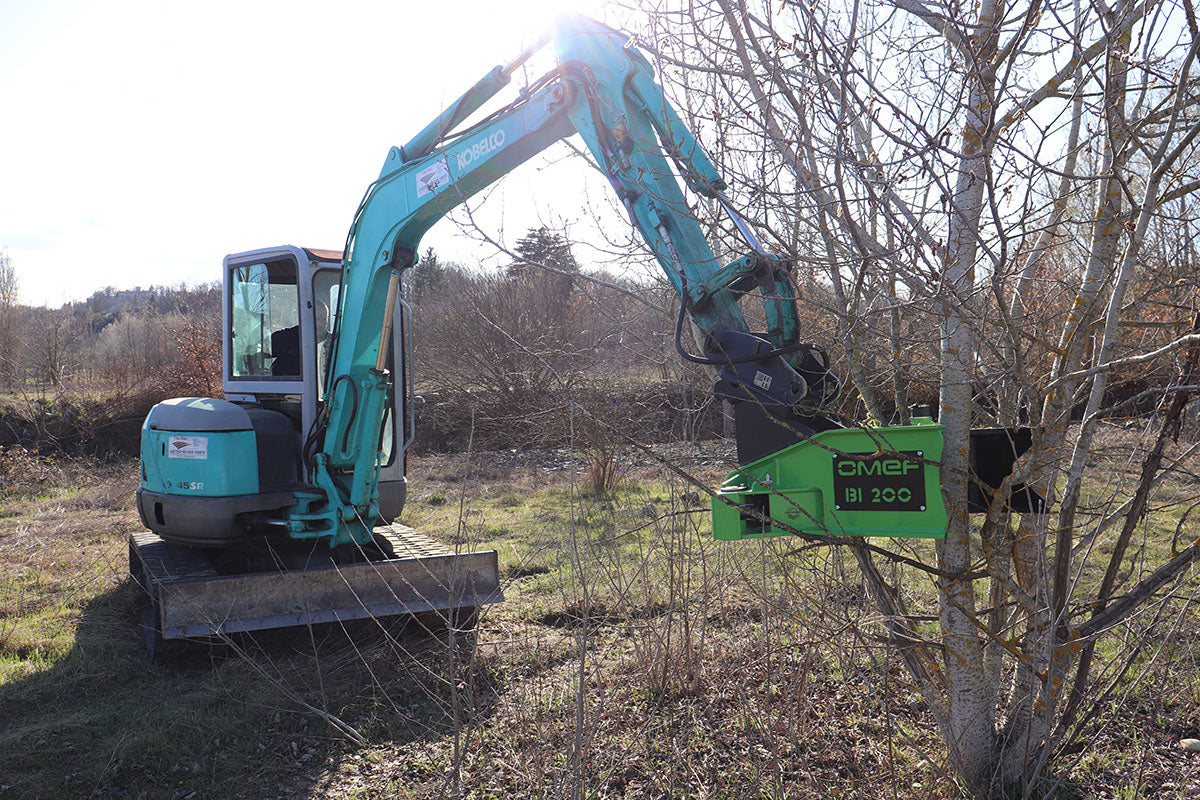

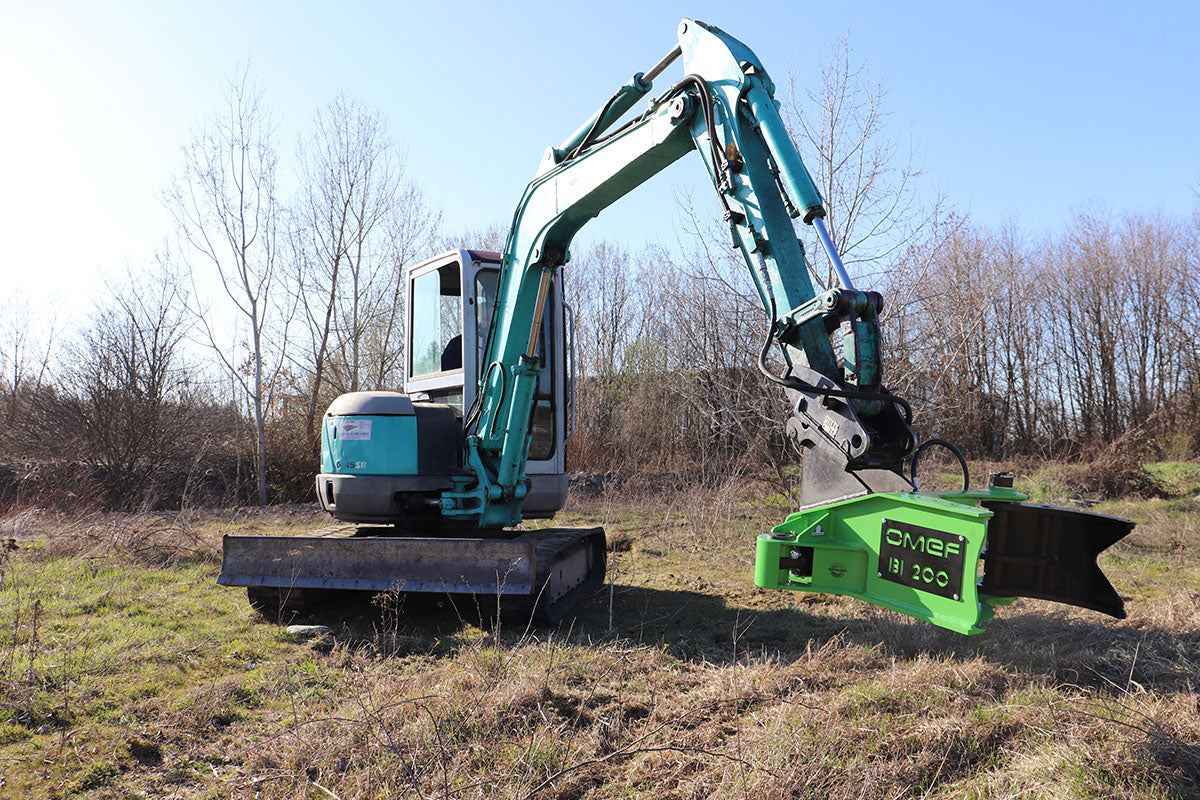

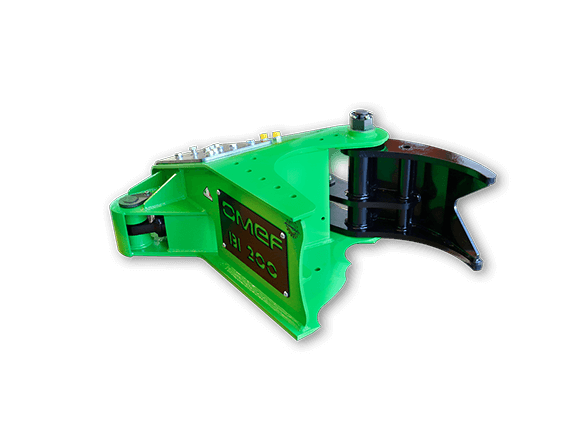

The little of “BIG INCH” family, only apparently. Equipped with a 20 t of force cylinder, it allows a neat and quick cut up to 200 mm diameter, transforming your mini excavator from 2,5 t to 8 t, into an efficient forest machine.
Technical Information
Excavator class weight | 2,5 – 8 tons |
Attachment weight | 230 Kg / 507 Lbs |
Min cut diameter | 2" / 50 mm |
Max cut diameter | 200 mm / 8" |
Oil pressure | 180 – 250 bar | 2610-3625 psi (min-max) |
Hydraulic flow | 30 – 80 l/min | 8-21 gal/min (min-max) |
Width | 39" / 1015 mm |
Lenght | 35" / 879 mm |
Height | 18" / 452 mm |
OMEF-GROUP is a mechanical manufacturing company operating in the field of forestry machineries.
OMEF-GROUP guarantees a 100% Made in Italy product of the highest quality, entirely designed and manufactured in our indoor area located in Tagliolo Monferrato. (AL).
It is specialized in design, production and sale of professional equipment for Forestry, Green maintenance and Agriculture, for use with excavator, tractor and other operating machines, boasting more than 20 years of experience acquired in precision mechanical manufacturing.
OMEF-GROUP is present in over 30 different countries with a professional dealers network, is a CE certified company and it is also part of the major associations of national and european manufacturers.
