BI100 1.5 to 3Tonnes
BI100 1.5 to 3Tonnes

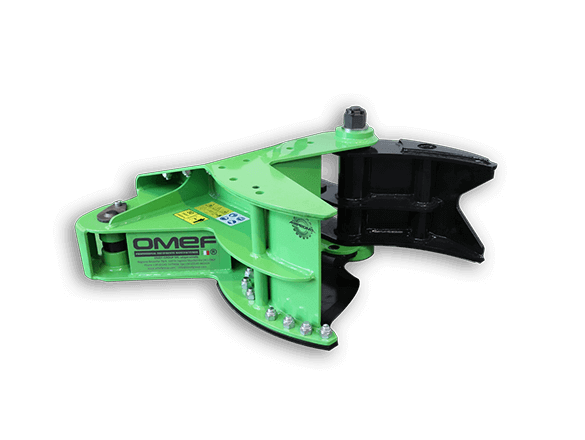

Robust and versatile tree-shear, suitable for small breakdowns.

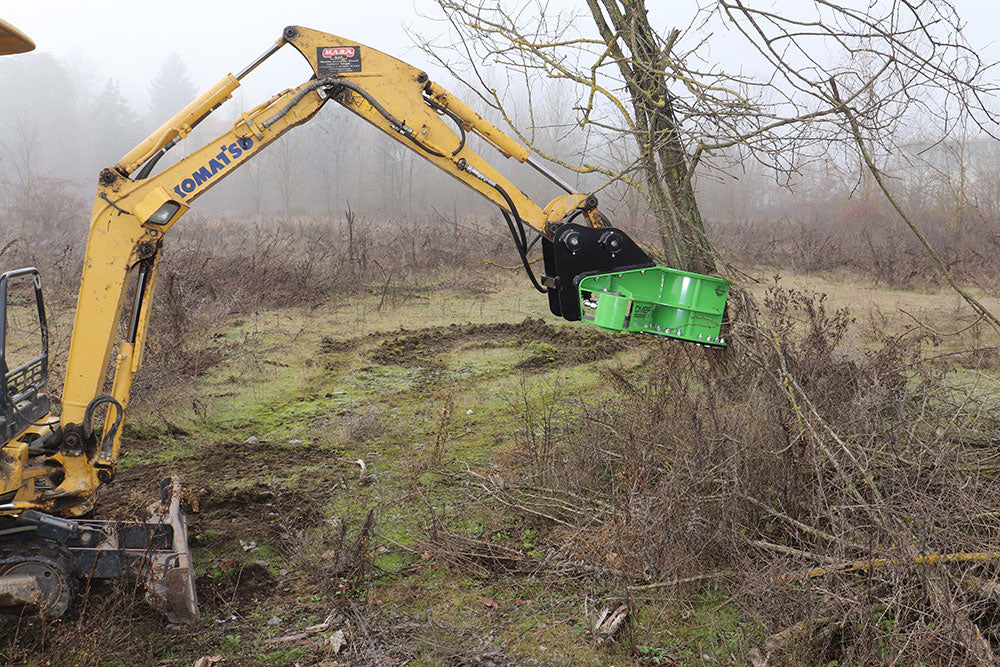

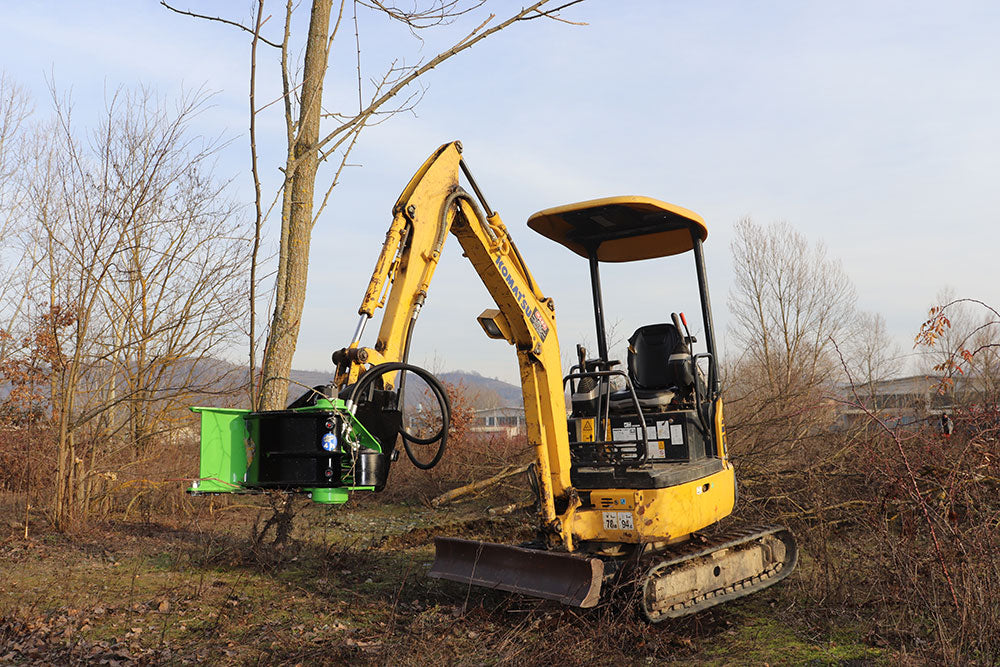

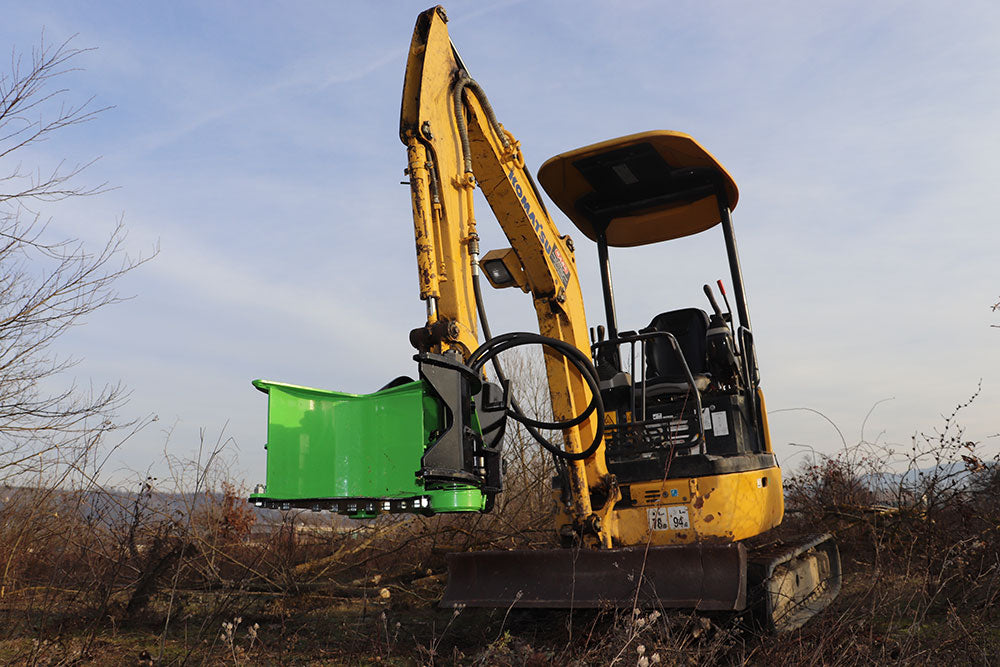

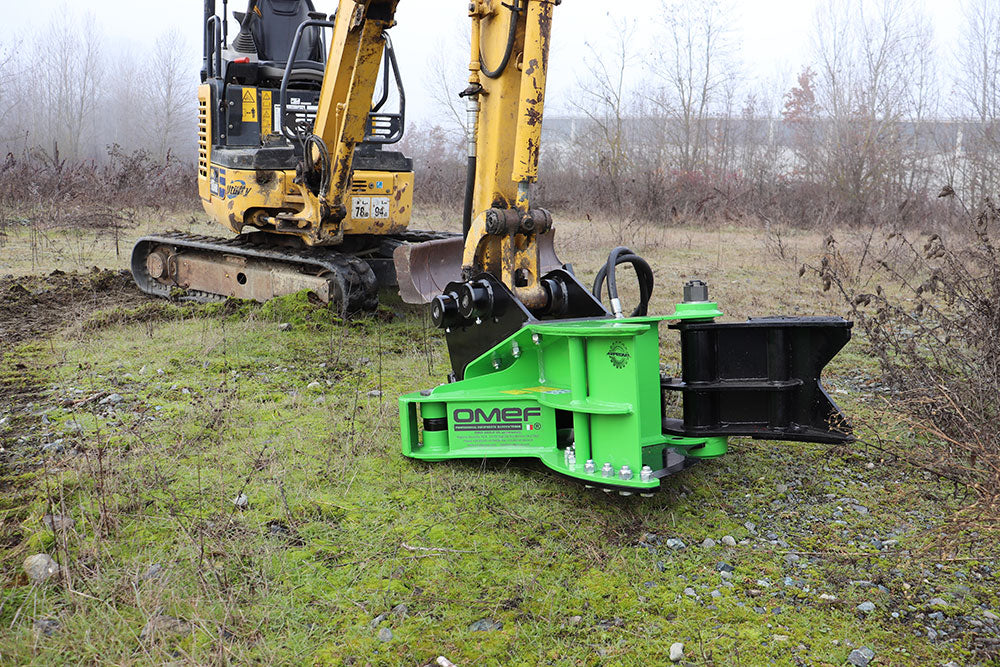

It is an attachment for tractor cranes, mini loaders, mini diggers, telescopic handlers and excavator from 1,5 up to 3 tons.

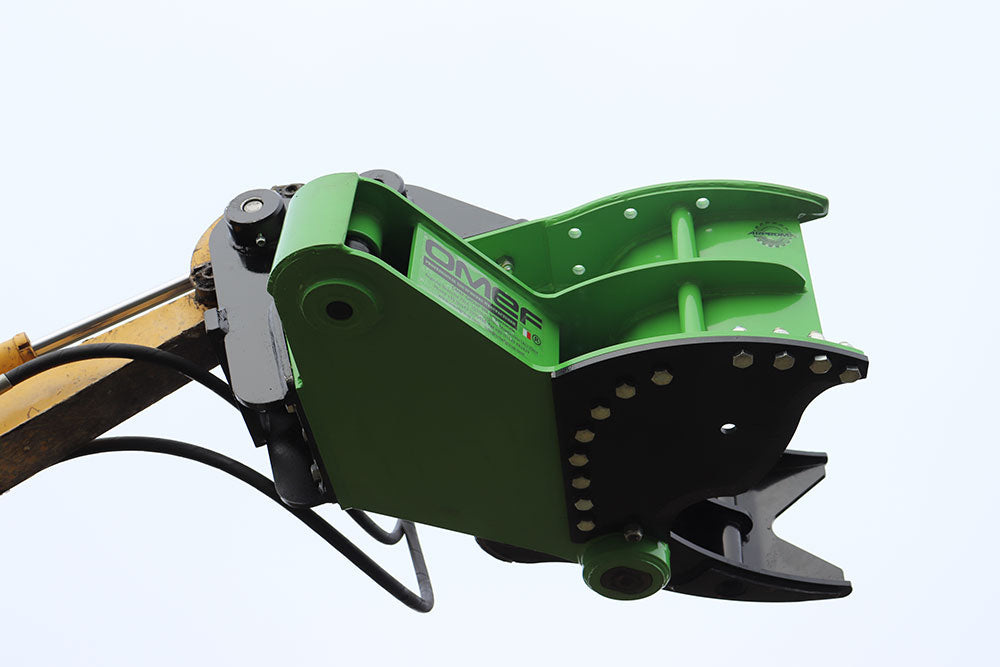

The high performance hydraulic cylinder operates the grab allowing the trunk cut and its contemporary holding.
It reduces the movements of the operating machine and speeds up the consequent loading, chipping and shredding phases.
BI100 Specifications
| Excavator class weight Tractor power |
1,5 – 3 tons > 100HP |
| Attachment weight | 140 Kg | 310 lbs |
| Min cut diameter | 40 mm | 1,5" |
| Max cut diameter | 150 mm | 6" |
| Oil pressure | 180 – 250 bar | 2610 – 2900 psi (min-max) |
| Hydraulic flow | 25 – 60 l/min | 7 – 16 gal/min (min-max) |
| Width | 800 mm | 31" |
| Lenght | 775 mm | 30" |
| Height | 420 mm | 16" |
OMEF EST 1991
OMEF-GROUP is a mechanical manufacturing company operating in the field of forestry machineries.
OMEF-GROUP guarantees a 100% Made in Italy product of the highest quality, entirely designed and manufactured in our indoor area located in Tagliolo Monferrato. (AL).
It is specialized in design, production and sale of professional equipment for Forestry, Green maintenance and Agriculture, for use with excavator, tractor and other operating machines, boasting more than 20 years of experience acquired in precision mechanical manufacturing.
OMEF-GROUP is present in over 30 different countries with a professional dealers network, is a CE certified company and it is also part of the major associations of national and european manufacturer.
